 Post subject: SCM 440
PostPosted: Sat Jul 08, 2017 11:39 pm
Offline

Joined: Tue May 30, 2017 8:21 pm
Posts: 10
G,day

We are putting together a new/stepping up my 440 cube combo for my Aussie 68 Fairmont street/strip deal

Dart SHP 9.5 block
1150 APD billet enforcer domi carb
SCM air supremacy intake or possibly a CHI pro series intake
SCM raised port clevo heads, 58.9 chamber, 2.19 hollow stem intake valves, 1.625 comp plus exhaust
PAC 1325 valve springs, tool steel retainers
Custom bullet 55mm roller cam
272/283@50, 833/820 lift 114 lobe sep
12.5 comp on pump gas, maybe some race fuel at the track
Danny Bee belt drive
T&D 1.75 rockers
trend 7/16 pushrods
ATI balancer
Meziere electric water pump
CP bullet pistons with 1.2 rings
Oliver 6.2 rods
Callies 4.0" magum crank
Custom fabricated ali wet pan, with moroso external oil pump
GZ vac pro series pump
2" primary headers with 3.5" collector
ICE 7amp ignition with voltage booster

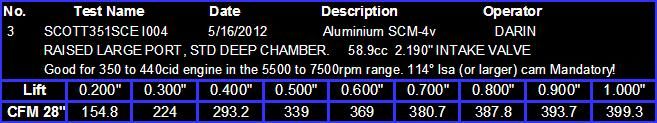

Flow figures for the heads are below

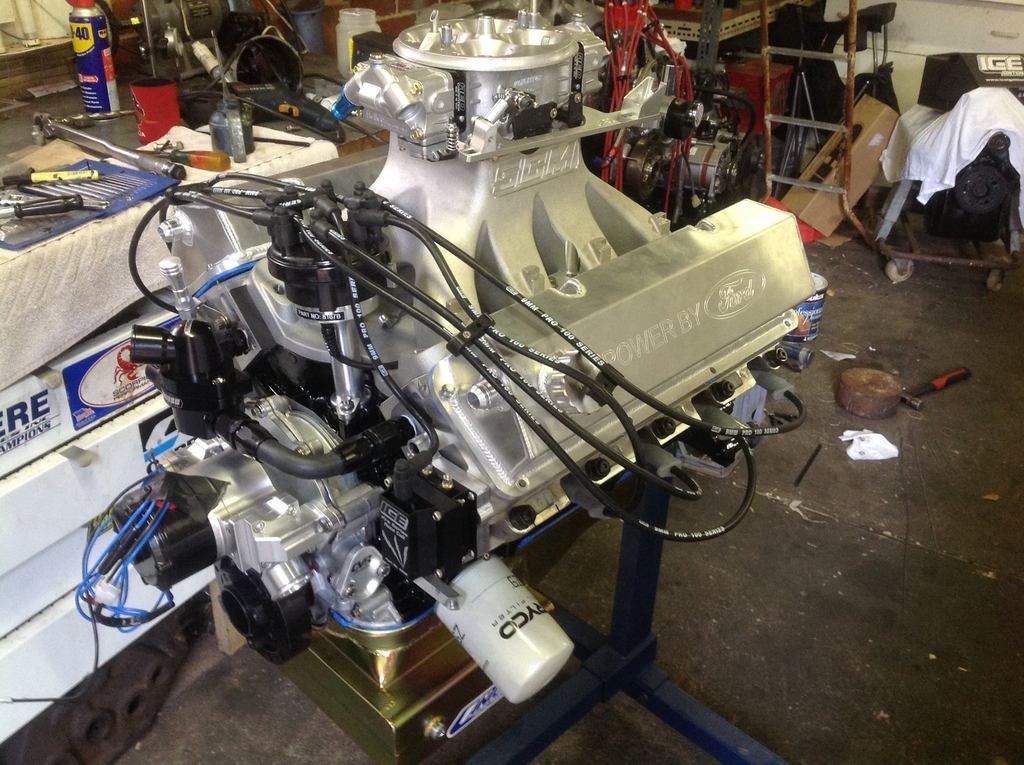

This is the combo we are stepping it up from & using a lot of the same parts
This combo went 9.94@135 pushing 3640 lbs



Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sun Jul 09, 2017 6:20 am
Offline

Joined: Mon Oct 29, 2012 9:05 am
Posts: 2417
Excellent! Nice engine, Brad.

_________________
Brent Lykins, Lykins Motorsports
www.lykinsmotorsports.com
brent@lykinsmotorsports.com


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sun Jul 09, 2017 8:12 am
Offline

Joined: Tue May 30, 2017 8:21 pm
Posts: 10
Thanks mate, I hope so


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sat Jul 15, 2017 5:28 am
Offline
User avatar

Joined: Wed Oct 31, 2012 8:43 pm
Posts: 297
Sounds like 850hp. I just dynoed my 408 Cleveland with air supremacy intake, and ADP 1050 billet enforcer, and making 752 at 7600. More too come good luck with build...

_________________
Tim/Izzy


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sat Jul 15, 2017 5:35 am
Offline

Joined: Tue May 30, 2017 8:21 pm
Posts: 10
DragBoss wrote:
Sounds like 850hp. I just dynoed my 408 Cleveland with air supremacy intake, and ADP 1050 billet enforcer, and making 752 at 7600. More too come good luck with build...


Thanks

What do you think of the APD carb?


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sat Jul 15, 2017 7:38 am
Offline

Joined: Sat Dec 21, 2013 9:21 am
Posts: 71
Great looking engine.
I really like those valve covers. Who makes them?
garyv


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sat Jul 15, 2017 8:09 am
Offline

Joined: Tue May 30, 2017 8:21 pm
Posts: 10
garyv wrote:
Great looking engine.
I really like those valve covers. Who makes them?
garyv


Thanks
They are made in Australia


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sat Jul 15, 2017 10:13 pm
Offline
User avatar

Joined: Wed Oct 31, 2012 8:43 pm
Posts: 297
Brad24 wrote:
DragBoss wrote:
Sounds like 850hp. I just dynoed my 408 Cleveland with air supremacy intake, and ADP 1050 billet enforcer, and making 752 at 7600. More too come good luck with build...


Thanks

What do you think of the APD carb?

They are 20 min from my work, with mine unbelievable throttle response. Mine is totally black. Really have to race with it, to determine.

_________________
Tim/Izzy


Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Sat Jul 15, 2017 11:05 pm
Offline

Joined: Tue May 30, 2017 8:21 pm
Posts: 10
DragBoss wrote:
Brad24 wrote:
DragBoss wrote:
Sounds like 850hp. I just dynoed my 408 Cleveland with air supremacy intake, and ADP 1050 billet enforcer, and making 752 at 7600. More too come good luck with build...


Thanks

What do you think of the APD carb?

They are 20 min from my work, with mine unbelievable throttle response. Mine is totally black. Really have to race with it, to determine.


OK thanks
I went for the polished version, looks mint I reckon



Top
 Profile

 Post subject: Re: SCM 440
PostPosted: Tue Jul 18, 2017 3:49 pm
Offline
User avatar

Joined: Wed Oct 31, 2012 8:43 pm
Posts: 297
That looks sharp man, I like it better than black, but black makes a statement a little notorious....Cant wait to really test it other than dyno.

_________________
Tim/Izzy


Top
 Profile
